SPARTUS SP45HY/MY  SP85HY/MY  SP125HY/MY

Type: SPARTUS® SP45 / 85 / 125

  • Torch without parts
  • Ergonomic handle
  • Protection against accidental turning on
  • Standard length 7,5m or 15m
  • Machine plasma torch straight 180o

1 / 2



Technical parameters


Max. cutting current 40-125A
Duty cycle 60%
Cooling type air / N2
Working pressure 5.0 / 6.0 bar (~72 - 85psi)
Min. air flow rate 295 l/min
Arc ignition NO HF




Download data sheet Click on photo to enlarge Click on photo to enlarge



DESCRIPTION CODE PRICE  [EUR]
SP45HY / SP85HY / SP125HY 7,5m handheld plasma torch
(central plug) *
SP45-85-125-H-SP2-7
SP45HY / SP85HY / SP125HY 15m handheld plasma torch
(central plug) *
SP45-85-125-H-SP2-15
DESCRIPTION CODE PRICE  [EUR]
SP45MY / SP85MY / SP125MY 7,5m machine plasma torch
(central plug) *
SP45-85-125-M-SP2-7
SP45MY / SP85MY / SP125MY 15m machine plasma torch
(central plug) *
SP45-85-125-M-SP2-15

* torch without parts

Holder used in machines

ProCut 45PFC

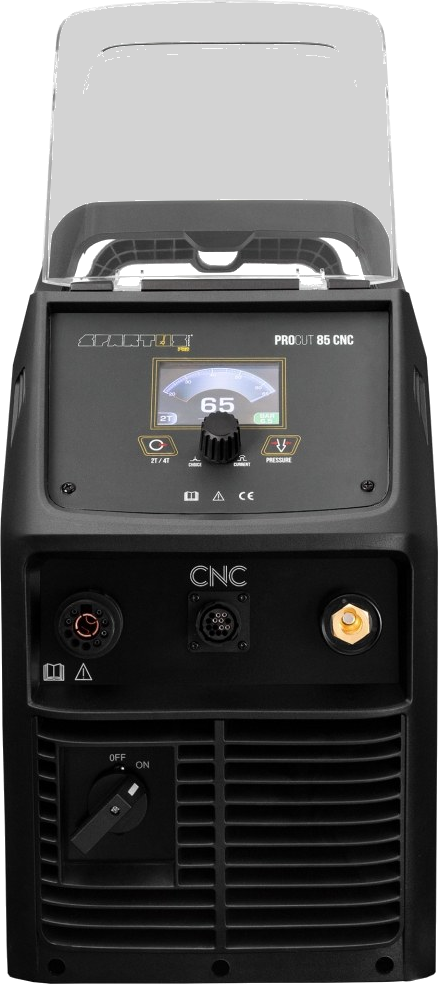

ProCut 85CNC

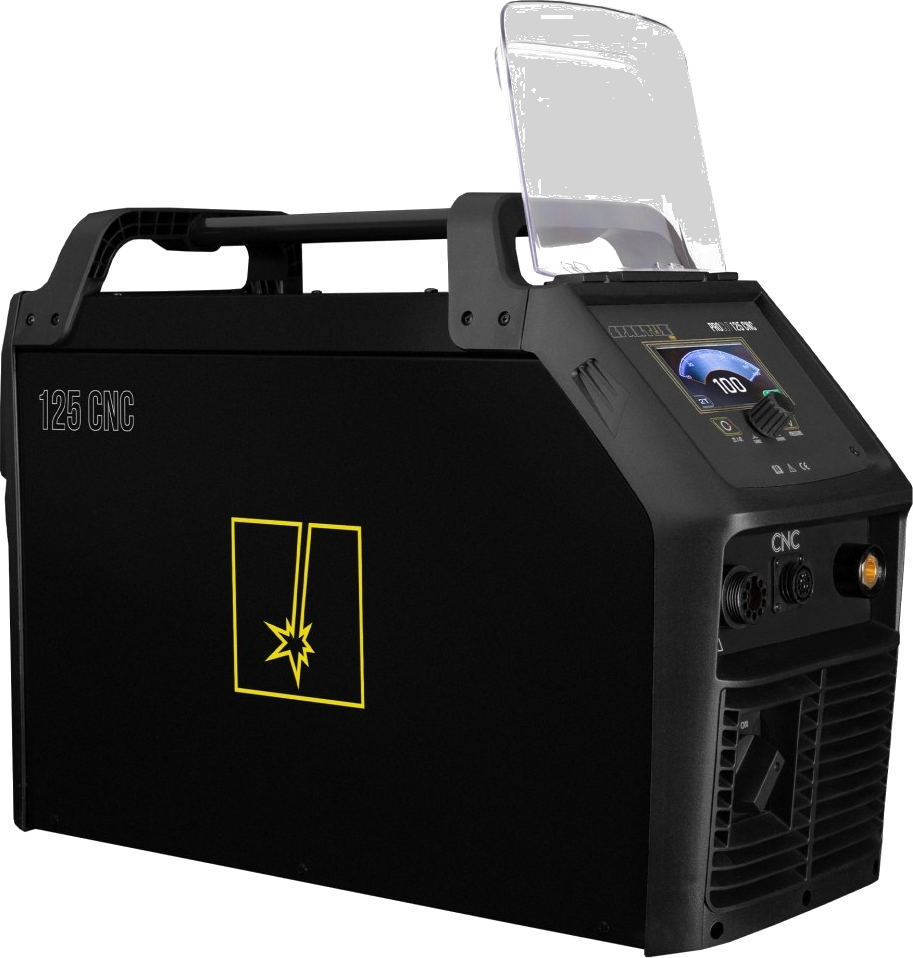

ProCut 125CNC
